PT1 V2 with colour screen :: Compac Industries

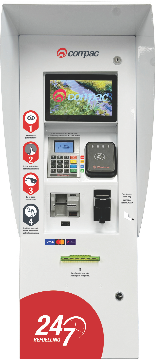

Easy to use and built from stainless steel, the Compac PT1 V2 Payment Terminal is robust and designed to withstand the harshest conditions.

It is ideal for any Unattended Refuelling site and features a 7" colour touch screen with advanced graphics and video capability.

Compac Payment Terminals offer great versatility in their functionality. The PT1 V2 payment terminal has the ability to connect to:

With the Payment Terminal, authorisation of fuel pump can also be made at the unit with:

Model	PT1 V2
Colour LCD Display	7" LCD capacitive touch screen Display featuring 850 cd/m2, high visibility advanced graphics and video with 1024 x 600 resolution. The LCD is secured with a tamper-proof bezel mounting.
Credit / Debit / EFTPOS PINPAD	WINDCAVE SKP200 PINPad
Credit / Debit / EFTPOS Cardreader	WINDCAVE SCR200 Card Reader
Card Reader for White cards	Magtek Card Reader especially designed for outdoor, unattended fuel sites
Receipt Printer	Thermal printer specifically designed for outdoor unattended use with presenter designed to prevent jamming. Paper roll dimension 80mm wide x 295mm long
Authorisation	Account Cards with offline functionality All major Credit, Debit and EFTPOS Cards Paywave / QR Code / Bar Code reader CompacPay Mobile Payment App
Power Supply	200 - 240V, 3.4 amps UPS, battery backed, enables customers to get receipts in event of power failure The UPS also provides power and surge protection
Supported Fuel Pumps	Compac, Gallagher, Gilbarco, Wayne
Communications	4G / 5G or Ethernet
Operating Temperature	-25°C to 55°C with internal thermostat environmental control for optimal low temperature operation
Tank Gauging Interface	Colibri, Fafnir, Veeder-Root with 4-20ma probe (max 2)
Construction	Stainless Steel
Mounting Options	Wall, tank or pedestal
Compliance	PCI & NMI Approvals
