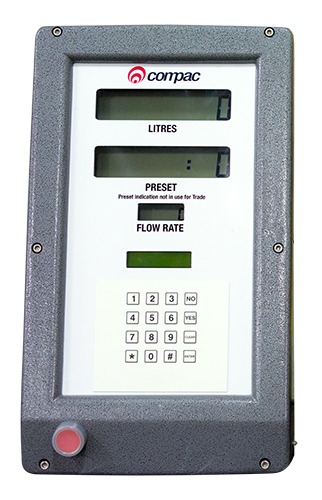

Bulk Meter Register (BMR)

Compac has the ideal solution to your bulk refuelling needs.

The Compac BMR is suitable for a variety of applications:

  • Rail Refuelling Networks
  • Aviation Refuelling
  • Ship Refuelling
  • Tanker Refuelling
  • Metering from Fuel Delivery
  • Heavy Vehicle Refuelling

In the simplest application the BMR is used to start a pump and register the amount of fuel delivered. However there are many advanced features that can be enabled depending on your site requirements.

The BMR has:

  • A range of back lit LCD displays for different applications
  • Card Reader, CWID Key Reader and PIN Pad with
  • Dot Matrix Display authorisation options
  • Waterproof, intrinsically safe 3 channel encoder for any positive displacement meter. Will accept inputs from most alternative encoder outputs
  • Temperature probe for temperature compensation
  • Standards Australia approval for use in a Class 1 Zone 1 hazardous area
  • National Standards Commission of Australia approval (Weights and Measures)
  • Additive injection pulse output

The BMR has the following specifications:

Flow control valves 1.5”, 2”, 2.5”, 3”, 4”, 6”, 8”
Site controller Communicator Controller or DCA
Operating temperature range  -20°C to +50°C
PIN pad Yes
Receipt printer Yes
Bill of lading printer Yes
Additive injector (metering type) Yes
Overfill protection Yes
Emergency stop button Yes
Construction Rugged cast aluminium box
