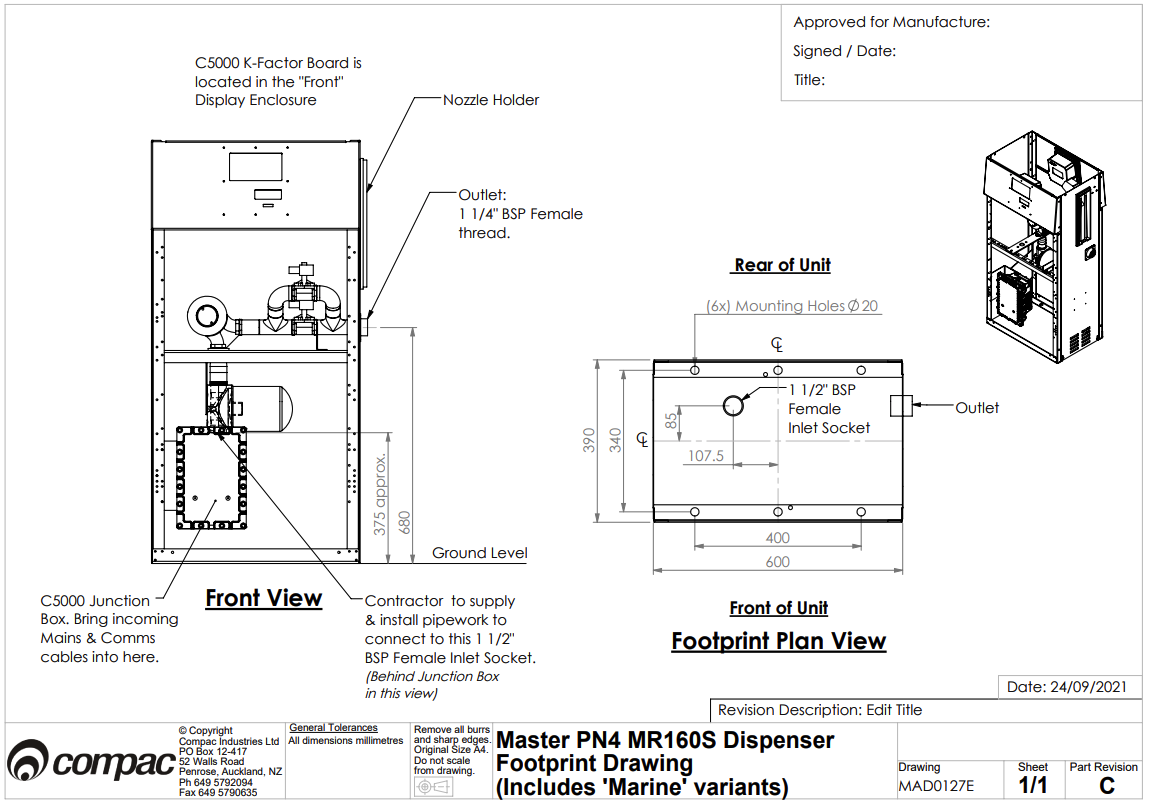

Master PN4 MR160S Dispenser Footprint Drawing (Includes 'Marine' variants)

This footprint drawing provides precise dimensions and layout specifications for the Master PN4 MR160S Dispenser, including the ‘Marine’ variants designed for demanding coastal and offshore environments. It supports planning for installation, maintenance clearances, and integration with other site infrastructure. Use this reference to ensure correct setup and compatibility with your operational requirements.
