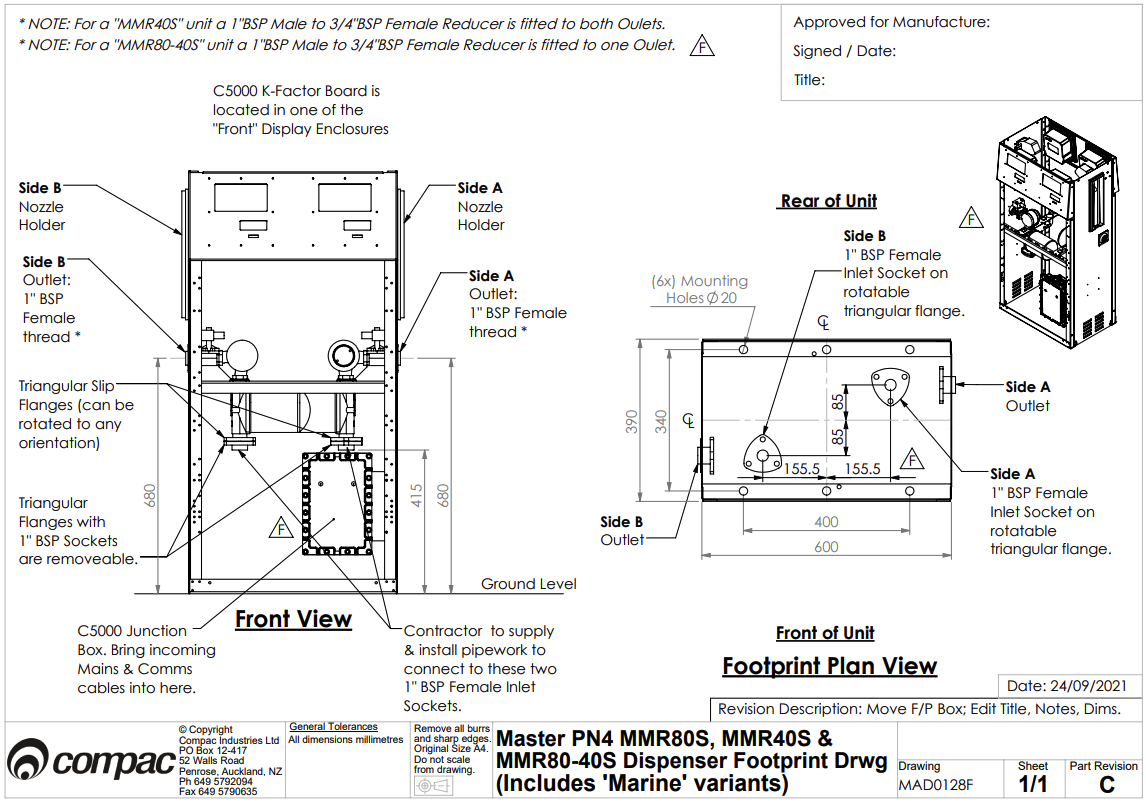

Master PN4 MMR80S, MMR40S & MMR80-40S Dispenser Footprint Drawing (Includes 'Marine' variants)

This footprint drawing provides detailed layout and connection information for the Master PN4 MMR80S, MMR40S & MMR80-40S Dispensers, including marine variants. It shows nozzle holder placement, inlet/outlet positions, and mounting specifications to support accurate installation.

• NOTE: For a “MMR40S” unit a 1" BSP Male to 3/4" BSP Female Reducer is fitted to both outlets.
• NOTE: For a “MMR80-40S” unit a 1" BSP Male to 3/4" BSP Female Reducer is fitted to one outlet.
