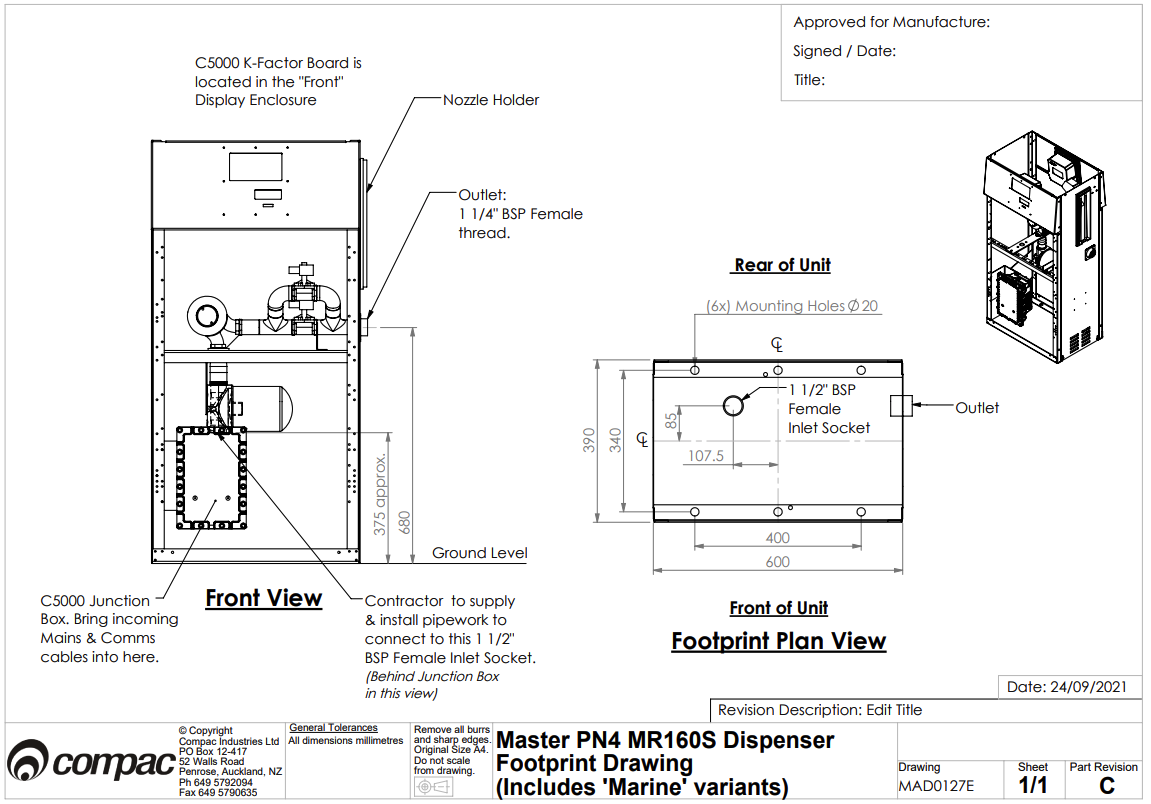

Master PN4 MMR160S Dispenser Footprint Drawing (Includes 'Marine' variants)

This footprint drawing outlines key dimensions and connection points for the Master PN4 MMR160S Dispenser, including marine variants. It details nozzle holder and outlet locations, inlet socket specifications, and mounting hole positions to support accurate installation and integration into site infrastructure.
