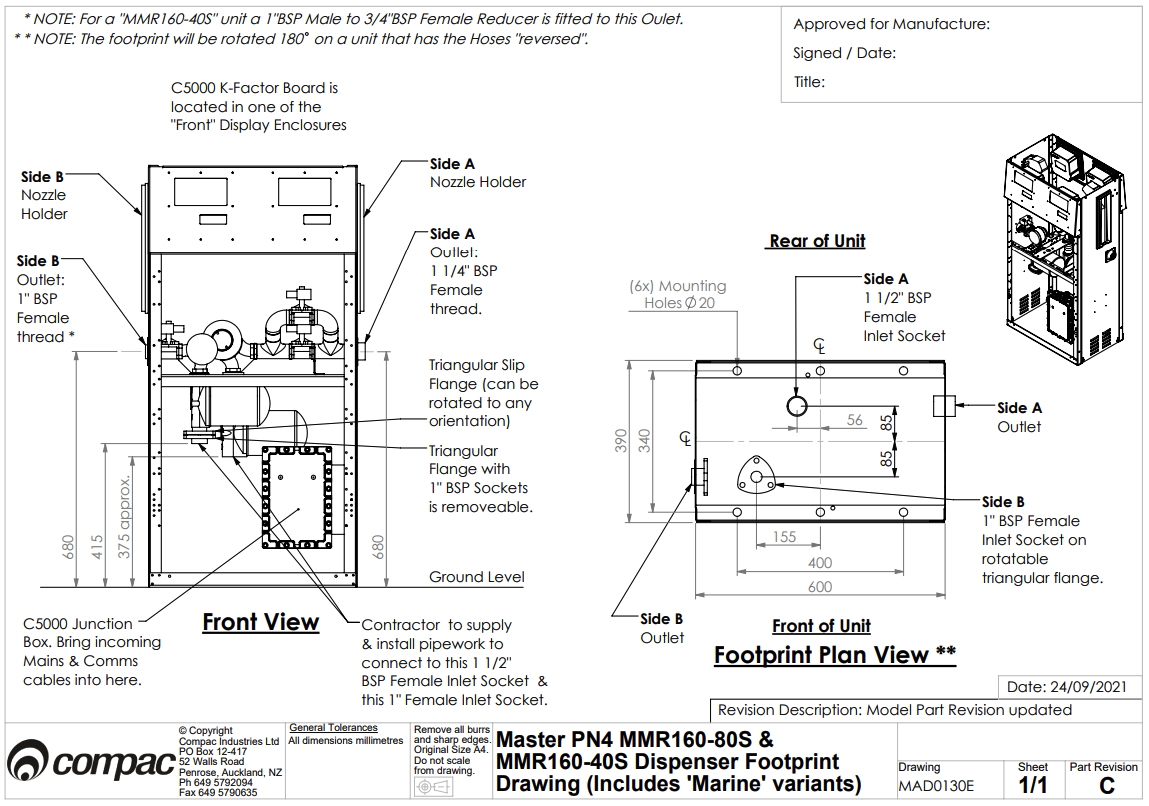

Master PN4 MMR160-80S & MMR160-40S Dispenser Footprint Drawing (Includes 'Marine' variants)

This footprint drawing provides layout and connection details for the Master PN4 MMR160-80S and MMR160-40S Dispensers, including marine variants. It includes mounting dimensions, nozzle holder and outlet locations, and inlet socket specifications to guide accurate installation and configuration.

NOTE: For a “MMR160-40S” unit a 1" BSP Male to 3/4" BSP Female Reducer is fitted to this outlet.

NOTE: The footprint will be rotated 180° on a unit that has the hoses "reversed".
